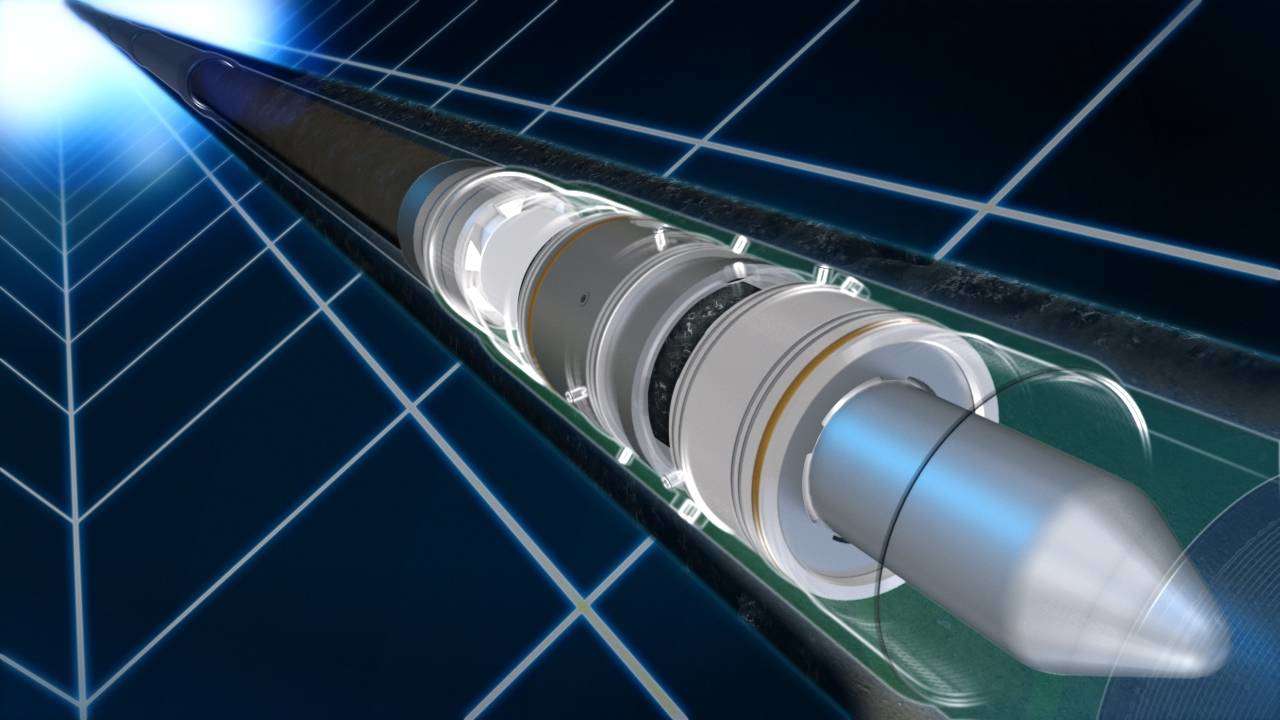

Stage Collars for Multi-Stage Cementing

Multi-stage cementing tools allow the cementing of selected intervals of the casing string to be executed in different stages. Stage collars are a frequent requirement in cementing operations when two or more separate sections behind the same casing string need cementing or for selectively cementing above inflatable packers. Saga group offers mechanical and hydraulic designs of stage collars that are available in a wide range of incremental sizes and manufactured to match up to customers casing grade, weight and thread type. For more information about Saga stage collars, contact melvinsng@sagapce.com and kims@sagapce.com

Key Features

Mechanical Actuation Technology

Saga PCE’s mechanical stage collars utilize free-fall or pump-down opening devices for reliable port activation:

Proven Opening System – Free-fall opening cones or pump-down plugs shift internal sleeves to open cementing ports
Positive Closing Mechanism – Closing plug lands and seals against composite seat to close ports after second-stage cement displacement
Dual Snap Ring Locking – Robust locking mechanism prevents unintended reopening and withstands upward forces exceeding 100,000 lb

Hydraulic Actuation Technology

Our hydraulic stage collar designs provide pressure-activated opening for deviated and horizontal wells:

Differential Area Design – Larger upper surface area on internal sleeve enables hydraulic opening at preset pressure (typically 700-1,400 psi)
No Free-Fall Device Required – Tool opens based on applied pressure after shutoff plug lands, ideal for high-angle wells
Customizable Opening Pressure – Field-adjustable shear pins allow coordination with inflatable packers and other hydraulic tools in the string

Manufacturing Excellence

Composite Seat Technology – High-strength composite materials enable fast drill-out with PDC bits while maintaining temperature stability up to 350°F
Anti-Rotation Design – Patented locking systems prevent sleeve rotation during drill-out, protecting bit integrity
Gas-Tight Sealing – Metal-to-metal seals backed by elastomer components ensure pressure integrity in critical zones
Casing Compatibility – Available in all standard casing grades, weights, and thread connections (API and premium threads)

Superior Sealing and Drill-Out Performance

Saga PCE’s stage collars feature optimized internal sleeve design and composite seat materials to deliver reliable sealing during cementing operations and efficient drill-out during completion. Our engineering approach balances tool strength with operational efficiency to minimize non-productive time.

Weld-Free Construction – Fully machined design eliminates welds and stress concentration points for enhanced tool integrity
Minimal Drill-Out Debris – Composite seats fragment cleanly without forming continuous rings that can damage PDC bits
Pressure Relief Design – Prevents fluid trapping during closing operations for smoother actuation
Stationary Seal Design – Seals remain fixed during operation to minimize wear and maintain gas-tight integrity
Temperature Rated – Standard operation up to 275°F; special high-temperature seals available for applications up to 375°F
Multiple Plug Configurations – Compatible with four plug set options to accommodate various cementing strategies

Applications

Formation Pressure Management

Saga PCE’s stage collars reduce hydrostatic pressure on weak formations:

Dividing cement column into stages to prevent fracturing low-pressure zones during primary cementing
Controlling equivalent circulating density (ECD) during cement displacement in narrow margin wells
Enabling cement placement without exceeding formation fracture gradients that cause lost circulation

Selective Zonal Isolation

Optimized for cementing widely separated intervals independently:

Isolating distinct production or injection zones behind single casing string with separate cement jobs
Cementing above inflatable packers to create isolated annular sections for selective stimulation
Preventing cement communication between zones with different pressure or fluid characteristics

Mud Contamination Reduction

Engineered to improve cement quality through staged displacement:

Minimizing cement-mud interface contact time by shortening displacement distances in each stage
Reducing cement dilution from prolonged contact with drilling fluids during long displacement operations
Enabling chemical wash placement between stages to clean annulus before second-stage cement
