Saga PCE offers retrievable production packer solutions designed for dependable tubing-to-casing isolation in oil and gas well completions. Built to support efficient production, injection, and workover operations, our packers are available in configurations suited to a variety of well conditions. Explore our product range below or continue reading to learn more about our retrievable production packer systems.
Retrievable Production Packer for Oil and Gas Operations

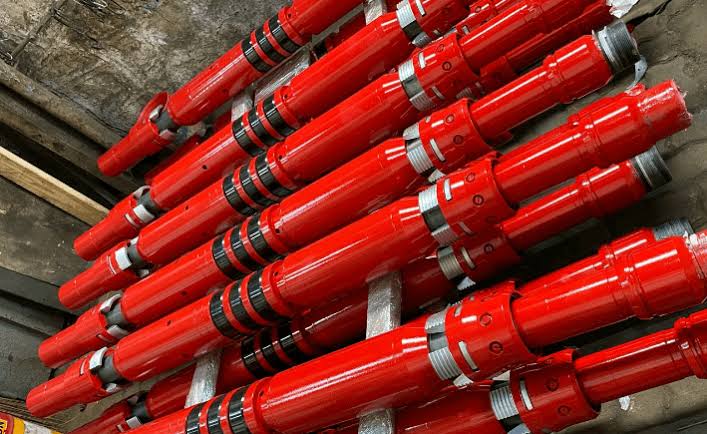

Saga PCE manufactures retrievable production packer systems designed to provide dependable tubing-to-casing isolation for a wide range of oil and gas well completion applications. Engineered for reliable sealing performance and efficient retrieval, our packers support production, injection, testing, and workover operations across onshore and offshore environments.
Available in mechanical-set, hydraulic-set, and hydrostatic-set configurations, our retrievable production packers accommodate different well conditions and operational requirements. Their retrievable design allows operators to remove, inspect, and reinstall the packer without destructive milling, helping minimise intervention time and reducing overall well maintenance costs.
Our retrievable production packers are manufactured using high-quality materials and precision engineering to withstand demanding operating conditions. Depending on project requirements, optional accessories such as seal bore extensions, control line feedthroughs, and specialised elastomer compounds can also be supplied to support more complex completion designs.
For technical specifications, product recommendations, or project enquiries, please contact our team at melvinsng@sagapce.com or kims@sagapce.com.
Product Overview

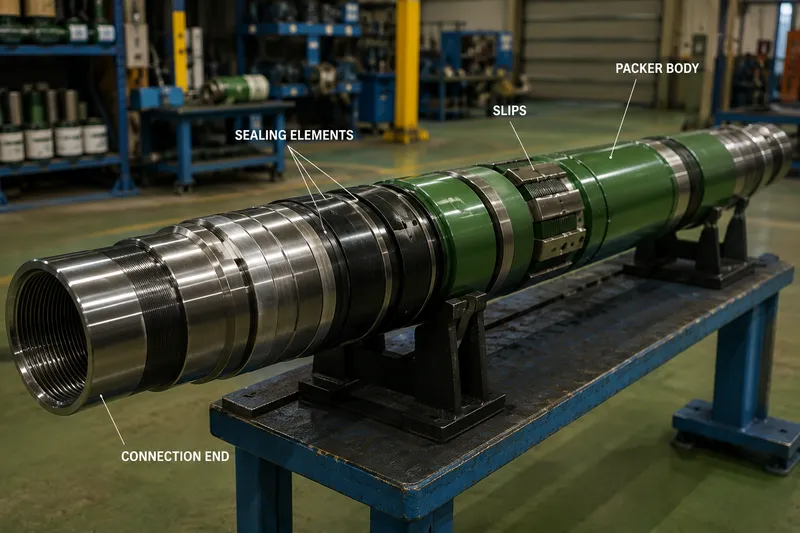

A retrievable production packer is a critical completion tool that creates a pressure-tight seal between the production tubing and casing. This isolation prevents unwanted fluid movement within the annulus while allowing hydrocarbons or injected fluids to flow through the production tubing as intended.
Unlike permanent packers, retrievable production packers are designed to be removed when required. This provides operators with greater flexibility during well intervention, maintenance, production optimisation, or completion modifications. After retrieval, the packer may be serviced, fitted with replacement sealing elements, and redeployed depending on operational requirements.
At Saga PCE, our retrievable production packers are developed to support reliable well performance while simplifying future intervention activities.
Benefits of Our Retrievable Production Packers
- Operational flexibility: Packers can be retrieved without milling, allowing faster workover operations and reduced downtime.
- Reliable zonal isolation: High-performance sealing elements help prevent pressure communication between isolated well sections.
- Multiple setting options: Mechanical, hydraulic, and hydrostatic designs allow operators to select the most suitable system for different well conditions.
- Engineered for demanding environments: Manufactured to perform in vertical, deviated, and horizontal wells across a range of production and injection applications.
- Regional engineering support: Manufactured in Singapore with technical expertise to support oil and gas projects across Southeast Asia.
Key Features
Every well presents different completion challenges. Our retrievable production packers are available in several configurations to provide dependable isolation while supporting efficient installation and retrieval.
Mechanical Setting TechnologyMechanical-set retrievable production packers use tubing movement to activate the packer without requiring hydraulic pressure. Key features include:
Mechanical-set packers are widely used where simple deployment procedures and dependable retrieval are required. |
Hydraulic and Hydrostatic Setting TechnologyHydraulic-set and hydrostatic-set retrievable production packers provide an alternative solution for wells where tubing manipulation is limited. These systems offer several operational advantages:
These configurations are commonly selected for highly deviated wells, offshore developments, and other applications where conventional mechanical setting may be less practical. |
High-Integrity Sealing PerformanceReliable sealing performance is essential for maintaining well integrity throughout production. Saga PCE’s retrievable production packers incorporate features designed to support long-term sealing performance, including:
Every packer is manufactured with careful attention to dimensional accuracy and material quality to support dependable sealing under challenging operating conditions. |

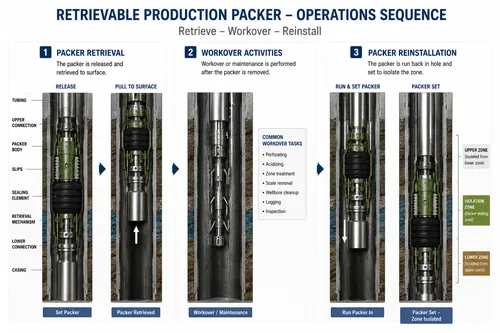

Efficient Retrieval and Reusability
One of the primary advantages of a retrievable production packer is the ability to recover the tool without destructive removal methods.
Our designs help operators maximise operational efficiency through features such as:
- Full bore access: Large internal bore designs allow production flow while supporting future wireline and intervention activities.
- Resettable construction: After inspection and servicing, packers may be prepared for redeployment where operationally appropriate.
- Anti-preset protection: Design features help minimise accidental setting during deployment, particularly in deviated wellbores.
- High-temperature capability: Suitable elastomer selections support elevated operating temperatures for specialised production environments.
- Completion flexibility: Available configurations support single-string, dual-string, and multi-zone completion systems.
Applications
Retrievable production packers play an important role in maintaining well integrity while giving operators the flexibility to perform future intervention work without permanently sacrificing downhole equipment. Their ability to provide dependable isolation while remaining removable makes them suitable for a wide range of production environments.

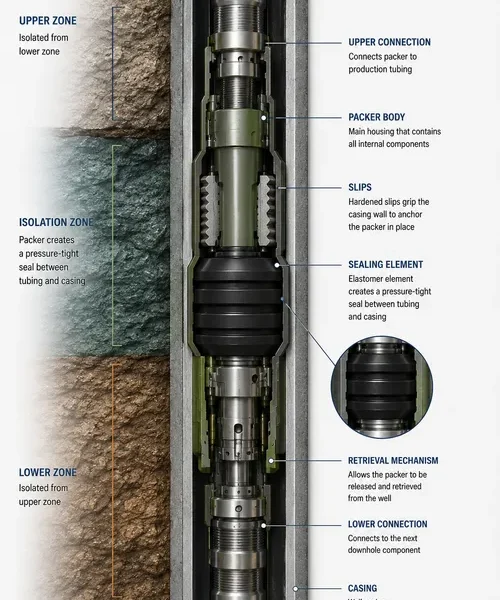

Annular Isolation and Pressure ControlA retrievable production packer establishes a secure seal between the production tubing and casing, helping maintain pressure control throughout the life of the well. Typical applications include:
Reliable annular isolation contributes to safer well operation while helping operators manage reservoir pressure more effectively.
|
Workover and Well Intervention OperationsUnlike permanent packers, retrievable production packers can be removed without destructive milling, making them well suited for wells that require periodic maintenance or production optimisation. Common workover applications include:
This flexibility helps reduce intervention time while lowering operational costs associated with repeated workover campaigns.
|

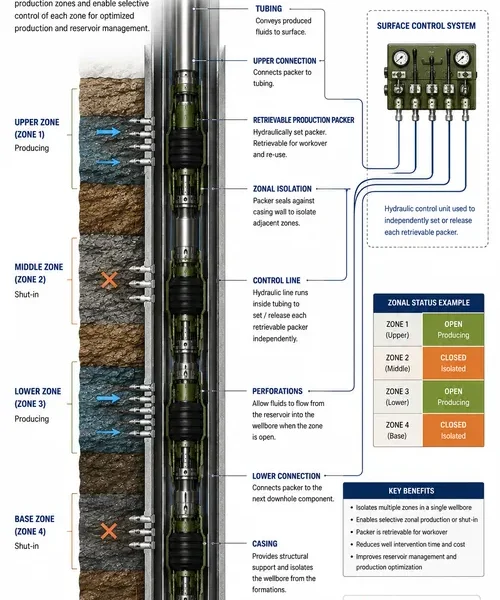

Multi-Zone Production and Injection SystemsMany modern wells produce from multiple reservoir intervals. Retrievable production packers allow operators to isolate these zones while maintaining flexibility for future production adjustments. Typical applications include:
These capabilities make retrievable production packers suitable for conventional oil and gas developments as well as more complex completion designs.
|
Frequently Asked Questions
What is the primary function of a retrievable production packer in well completions?
A retrievable production packer provides annular isolation between the production tubing and casing, creating a pressure barrier that separates the production zone from the upper wellbore. This helps maintain well integrity, prevent unwanted fluid migration, and support efficient production operations. Unlike permanent packers, retrievable designs can be removed without destructive milling, making future workover and well intervention activities more straightforward.
What is the difference between mechanical-set and hydraulic-set retrievable production packers?
Mechanical-set retrievable production packers are activated through tubing manipulation, such as tension, compression, or rotation, to engage the slips and compress the sealing element against the casing. Hydraulic-set retrievable production packers use applied tubing pressure to activate an internal piston that sets the packer without requiring tubing movement. The most suitable option depends on the well profile, completion design, and operational requirements.
How do hydrostatic-set retrievable production packers differ from conventional hydraulic designs?
Hydrostatic-set retrievable production packers utilise the well’s hydrostatic pressure to activate the setting mechanism once a predetermined pressure condition is reached. Conventional hydraulic-set packers, on the other hand, require pressure to be applied from the surface through the tubing. Hydrostatic-set designs are particularly useful in wells where tubing pressure application or manipulation is limited, while still allowing the packer to be retrieved when required.
What are the advantages of retrievable production packers compared to permanent packers?
Retrievable production packers provide greater operational flexibility because they can be removed for inspection, maintenance, or completion modifications without destructive milling. This makes them well suited for wells that may require future intervention, production optimisation, or equipment replacement. They also restore full wellbore access after retrieval, allowing additional wireline or workover operations to be carried out more efficiently.
What differential pressure and temperature ratings are typical for retrievable production packers?
The pressure and temperature ratings of retrievable production packers vary depending on the packer design, sealing elements, materials, and intended application. Standard and high-performance configurations are available to suit a wide range of production, injection, and specialised well conditions. The appropriate rating should always be selected based on the completion design and expected operating environment. Our team can recommend the most suitable configuration for your project requirements.
Can retrievable production packers accommodate control lines for multi-zone or ESP completions?
Yes. Selected retrievable production packer configurations can be supplied with control line feedthroughs that allow hydraulic control lines, electrical cables, or chemical injection lines to pass through the packer while maintaining annular seal integrity. These configurations are commonly used in multi-zone completions, electric submersible pump (ESP) installations, and other advanced completion systems where additional downhole control is required.
